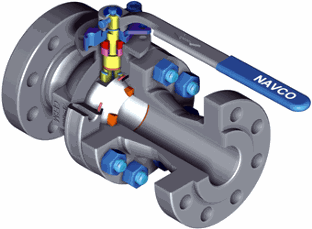

NAVCO Model B2

STANDARD FEATURES: Cast Steel Construction, Flanged End Connections.

TRIM: Stainless steel trim is incorporated as standard.

ISO ACTUATOR MOUNTING PAD: Easy installation of actuators and accessories, gear operators and locking device. Bolting pad as per ISO 5211 and MSS-SP 101

STEM: Valve incorporates blow-out proof stem. Anti-static spring and thrust washer aid in reducing turning torque

BALL: Floating ball design allows for positive shut-off in either flow direction. Pressure equalization hole provided in the ball to prevent entrapment of pressure in the body cavity.

SEALS: O-ring primary seal and a fully captured graphite packing secondary fire safe seal.

NAVCO Model B2 Valves Brochure

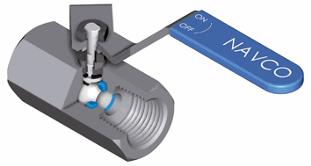

Navco Model H1L

Hex Bar Stock Construction

Threaded End Connections

STANDARD FEATURES: Stainless steel trim is incorporated as a standard.

COMPLIANCE TO SPECIFICATIONS:

ISO 9001: Registered Quality System
ASME B2.1, BS 21, DIN 259/2999
NACE MR01-75 (2002 Rev) Sulfide Stress Cracking Resistant Metallic
Materials for Oilfield Equipment

NAVCO Model H1L Brochure

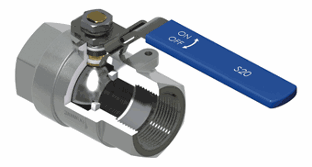

Navco Model S20 2000 PSI Ball Valve

STANDARD FEATURES:

2-Piece Threaded End Ball Valve, Full Port, 2000 WOG
Seal Welded in Full Stainless Version
Investment Cast Body
Fire Tested & Certified API 607 5th Editon
Working Pressure: 2000 PSI
Conforms to NACE MR0175 (2002) Specification
Positively Retained Stem Design
Handle Locking Device

NAVCO Model S20 2000 PSI Brochure
