Pneumatic Pumps
Texsteam Series 3700
The Series 3700 pump is designed to handle aqueos solutions and other chemicals. It is available in a wide variety of models with three volume adjustments and single or double headed units.
- Field adjustable speed/volume control.
- Operates with air/gas pressures as low as 5 psi.
- Furnished with or without reservoirs.
- Furnished with or without regulator and gauge.

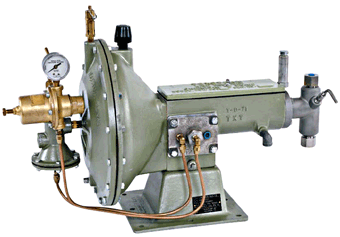

Texsteam Series 5000
The Series 5000 pump is designed for high ?ow and high pressure applications.
- Pressure as high as 10,000 psi.
- Designed for continuous operation.
- Excellent for pumping chemicals, methanol, and corrosion inhibitors.
- Field adjustable speed/volume control.
- Simple modi? cation can lower pumping rate to one stroke every ? ve minutes.
- Operates with air/gas pressures as low as 15 psi.
- Trim for corrosive applications available.
- Microswitch design available.
- Regulator, gauges and tanks available as accessories.

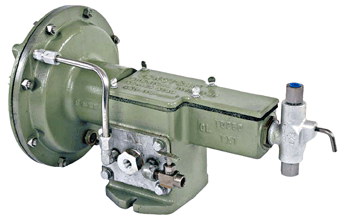

Texsteam Series 5100
The Series 5100 pump is powered by gas/air via a diaphragm with a spring return. The pump offers two strokes for adjustable 1” or 1/3” lengths and ?ow rates.- Direct acting.
- Powered by diaphragm motor with spring return.
- Field adjustable speed/volume control.
- Operates with air/gas pressures as low as 8 psi.
- Trim for corrosive applications available.
- Regulators, gauges and tanks available as accessories.
- Micro switch design available.
Download Full Technical Data & Parts List

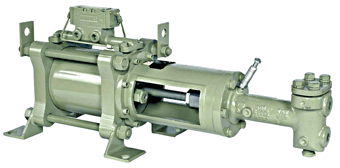

Texsteam Series 6100
The Series 6100 pump offers the highest ? ow rate, 20 gallons per minute, all the Texsteam chemcial injection pumps. This pump is well-suited for offshore applications with it’s optional three part corrosive resistant paint system.- Positive displacement pump.
- Simplex or duplex offering.
- Field adjustable speed/volume control.
- Exhaust gas can be recovered to minimize gas consumption.
- Heads made from cast steel or 316 stainless steel.
- Minimum NDSHR - 8 feet of water.
- Trim for corrosive applications available.
- Regulators, gauges and manifold available as accessories.

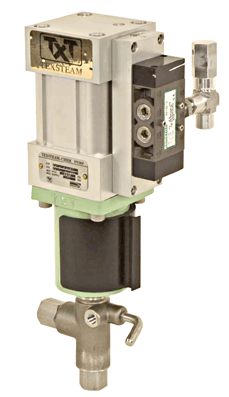

Texsteam Series MXG (Formerly MX3)
The Series MXG pump offers lightweight design with powerful performance. Weighing less then 10 lbs., it is capable of handling discharge pressures as high as 10,000 psi while consuming half the gas used by standard pneumatic pumps.- Adjustable ? ow rate
- Positive cycle operation
- Easily ? eld serviceable
- 316 SS ? uid end
- 1 to 60 strokes/minute
- Simplex or duplex offering
- Can be mounted vertically or horizontally
- Up to 62 gallons (235 liters) per day
- Discharge pressures to 10,000 psi (690 bar)
- Differential pressure: 250 psi (10 bar) maximum; 30 psi (2.1 bar) minimum

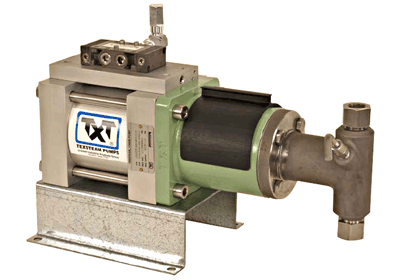

Texsteam Series MX5
The Series MX5 is a heavy duty, lightweight pump capable of pumping up to 830 gallons per day. It uses half the gas or air of a standard pneumatic pump to reach discharge pressures as high as 10,000 psi.- Adjustable packing
- Easily ? eld serviceable
- 1 to 60 strokes per minute
- Simplex or duplex offering
- Differential pressure: 145 psi (10 bar) maximum; 30 psi (2.1 bar) minimum
