Rugged, Versatile Options for a Wide Range of Applications

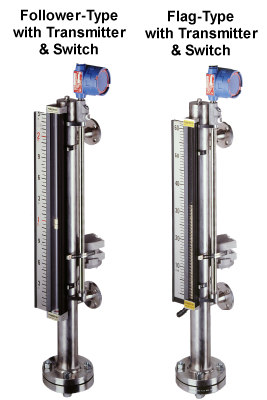

Penberthy's MULTIVIEW™ Magnetic Liquid Level Gages utilize a communicating chamber constructed of 2 or 1/2" pipe which is connected to the process tank with either side or end connections. A float with a self-enclosed magnet is custom sized and weighted to float at the surface of the process liquid to be monitored. The float is then installed in the communicating chamber.

The industry-unique concentric magnet in MULTIVIEW™ 2-1/2” gages provides a more consistent magnetic field than conventional magnet designs.

Construction Materials Available

Penberthy offers a wide range of materials, including:

304/304L STS
316/316L STS
Alloy-20
Monel
Titanium
Hastelloy-C
PVC
CPVC
PVDF
Tefzel® Lined
Halar® Lined

Typical Process Applications
Sodium Hypochlorite Boiler Feedwater Tank Hydrochloric Acid Stop Oil LPG Interface Dowtherm® Sulfuric Acid Hydrogen Sulfide Oil/Water Separator Sodium Hydroxide Liquid Nitrogen Flare Drums Phosgene	Ammonia Butane Seal Oil Pots Black Liquor Drip Pot Boiler Steam Drums Glycol Propane Hydraulic Oil Feedwater Heaters Extreme Flashing Hydrazine Caustic Chemicals Fuel Oil Hydrofluoric Acid	Jet Fuel Molten Sulfur Sour Oil Diesel Fuel Deionized Water Sumps Freon Liquid Ethylene Water Underground Storage Benzene Asphalt Settler Acetic Acid Liquids & Slurries
