NUTRON

NUTRON D2 Series Ball Valves

STANDARD FEATURES:

Integral Double Locking;

Safety Dual lockout
Tamper resistant: lock and ribbon seal capabilities
Operation protection: lock open or closed
Handle can be removed without affecting the locking device
Factory Stem Lubrication with Fitting:

Positioned in a protected, out of the way location
Provides corrosion protection for ease of operation throughout the valve life
Used to renew factory stem lubrication
Machined Fire Lip and Fully Supported Seat:

A machined fire lip provides protection to the seat ID and acts as a metal back-up seat in case of fire.
The seat area is designed to provide longer sealing life with superior performance at high and low pressures.

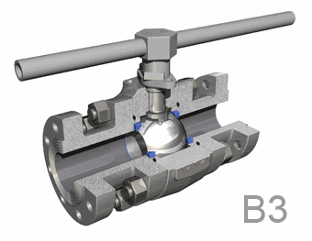

NUTRON Models T3 and B3

STANDARD FEATURES:

BODY SEALS: The Model T3 body seal o-rings are placed ahead of the body cap threads to protect the threads from the flow media.

STEM: Blow-out proof stem is back-seated through the valve body on the T3 and B3

BODY CONSTRUCTION: Forged Steel Construction

Threaded and bolted design allows for combinations of end connections on the T3 and B3
COMPLIANCE TO SPECIFICATIONS:

ISO 9001: Registered Quality System
API 6D, 598 and Q1 (Quality Specifications)
API 607 4th Edition - Fire Test for Soft Seated Quarter Turn Valves
CE 0879 - Certificate of Approval in Accordance with the Requirements
of the Pressure Equipment Regulations 1999
ASME B16.34, B16.10
NACE MR01-75(2002 Rev.) Sulfide Stress Cracking Resistant Metallic
Materials for Oilfield Equipment
CSA Z245.15 Steel Valves
ASME Section VIII Division 1 Boiler and
Pressure Vessel Code
Canadian Registration Number (CRN)

ASTM A105, A350 LF2, A479 TYPE 316

NUTRON Models T3 & B3 General Catalogue



NUTRON Model TT

STANDARD FEATURES:
  • Forged steel or Stainless Steel construction (Special alloys
    available)
  • Available with flanged and butt weld end connections
    (Combinations available)
  • Seat grease injection is standard in 6 in. full port through 16 in.
    reduced port valves

    Stem:
  • Blow-out proof anti-static stem is back-seated through the
    valve body.
  • Stem injection is standard for 4 in. full port through 16 in.
    reduced port valves

    Double Block & Bleed:
  • Standard on all trunnion ball valves.
  • ASTM A350 LF2, A479 TYPE 316

Compliance to Specifications:

  • ISO 9001: Registered Quality System
  • API 6D, 598 and Q1 (Quality Specifications)
  • API 607 4th Edition - Fire Test for Soft Seated Quarter Turn Valves
  • CE 0879 - Certificate of Approval in Accordance with the Requirements of the
    Pressure Equipment Regulations 1999
  • ASME B16.34, B16.10
  • NACE MR01-75(2002 Rev.) Sulfide Stress Cracking Resistant Metallic
  • Materials for Oilfield Equipment
  • CSA Z245.15 Steel Valves
  • ASME Section VIII Division 1 Boiler and Pressure Vessel Code
  • Canadian Registration Number (CRN)

NUTRON Model TT Forged General Catalogue
