3 PS Snap Pilot

PNEUMATIC PILOTS & RELAYS

0 to 30 psig signal pilots, 0 to 1500 psig control pilots.
Available in All Steel, some available in Ductile Iron.

Body Material	Cast Iron
Connection Type	NPT
Line Size	NA
Design Pressure	30
Controlled Pressure	30
Temperature Range	-20 to 150 deg F
Supply Pressure	30 psig
Output Pressure	30 psig

 Technical Specification & Parts List

3 PM Mechanical Pilot

MECHANICAL PILOT & MOUNTING BRACKETS

Body Material	Cast Iron
Connection Type	NPT
Line Size	NA
Design Pressure	30
Controlled Pressure	30

Technical Specification & Parts List

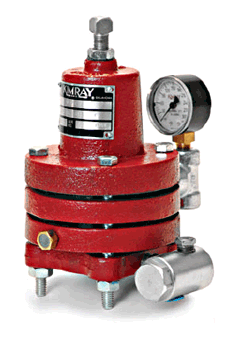

30 HPG PR-D Regulator Pilot

HIGH PRESSURE REDUCING CONTROL PILOTS

Pilot operated to regulate upstream, downstream, and differential pressure ranging from vacuum to 500 psig in pneumatic systems.

Body Material	XH Pipe
Connection Type	NPT
Line Size	NA
Design Pressure	300
Controlled Pressure	300
Diaphragms	Poly/Buna
Spring Range	5-300 psig
Working Pressure	300 psig
Temperature Range	-20 to 100 deg F
Supply Pressure	5-30psig
Output Pressure	5-30psig

3PGM

Body Material	XH Pipe
Connection Type	NPT
Line Size	NA
Design Pressure	30
Controlled Pressure	30
Diaphragms	Buna (Nitrile)
Temperature Range	-20 to 100 deg F

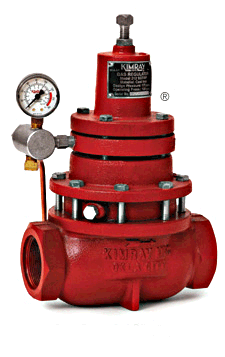

130 SGT BP-NV-D REG

1 IN NPT BACK PRESSURE - NON VENTING, DUCTILE

Features:

• Intermittent-bleed pilot


• Soft seat for full shut-ff (Class VI)


• High capacity (full line-size set opening)


• No system gases vented to atomosphere



Body Material	XH Pipe
Connection Type	NPT
Line Size	1"
Design Pressure	300
Controlled Pressure	300
Stem	303 Stainless
Plug	Ductile Iron
Tubing	316 Stainless
Seat	Polyurethane
Diaphragms	Buna (Nitrile) / Polyurethane
Spring Range	5-300psig
Disc	Steel
Working Pressure	300 psig
Temperature Range	-20 to 100 deg F
