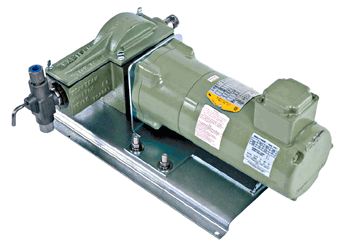

Texsteam Series 2200

• 1/4 horsepower electric-driven motor (TENV)

• 316 stainless steel fluid end

• Simplex or Duplex available

• Conduit Connection

• Single or 3 phase

• Maximum discharge pressure 1,000 psi

• Maximum volume 120 gallons per day (Duplex model)

• Built-in gear reducer available in 15, 30 or 60 strokes/minute

• Crosshead bearing supported on both ends

• Adjustable while running



 Technical Specification & Parts List

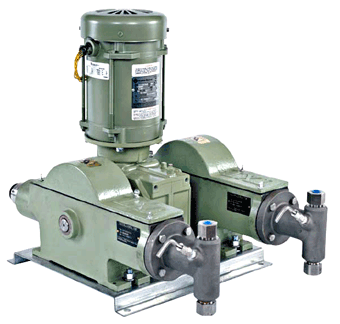

Texsteam Series 2400

• Maximum discharge pressure: 4,000 PSI (276 bar) with 1/2" plunger

• Maximum volume: 880 GPD (3,331 Liters) with 1-1/4" plunger

• Each fluid end is adjustable while running Simplex or Duplex configuration

• Avaliable in 2 speeds: 30 or 60 strokes per minute

• 1 Horsepower motor is standard (2 hp optional) 1 or 3 phase - TEFC or explosion proof

• Oil-less drive unit

• Plunger sizes: 1/2", 3/4", 1", 1-1/4"



Technical Specification & Parts List

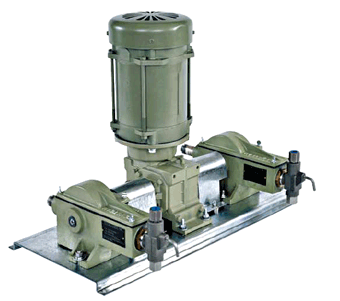

Texsteam Series 2500

• Maximum discharge pressure: 6,000 PSI (414 bars) with 3/16" plunger

• Maximum volume 139 gallons per day (528 liters per day) with 1/2" plunger

• Each Head is adjustable while running

• Avaliable Simplex, Duplex, Triplex, or Quadruplex configurations

• Mix or match head sizes - pump the same or different chemicals

• Avaliable in four stroke rates: 15, 30, 60 or 120 strokes per minute

• Each head is independently coupled - user friendly in the field

• 1/2 horsepower motor standard; optional 1 or 3 phase, TEFC or explosion proof, 50 or 60 Hz

• Avaliable with 3/6", 1/4", 3/8", or 1/2" plunger

• Meets or exceeds API 675 specifications where applicable



Technical Specification & Parts List

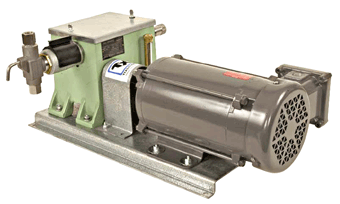

Texsteam Series 4300

• Positive displacement

• Up to 8 pumping heads driven by a single motor

• Each pumping head capacity is field adjustable 0 to 100% while running

• Oil bath lubrication for long gear box life



Technical Specification & Parts List
