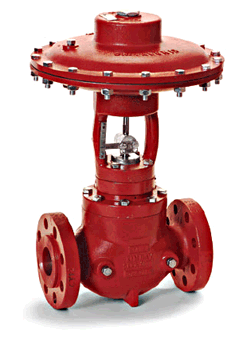

2" HPMV PB

PISTON BALANCED 2" STEEL BODY DUCTILE TOPWORKS

High Pressure Manual, Electronic and Diaphragm operated gas motor valves. 10 to 30 psig actuator signal to control up to 4000 psig.

Body Material	Steel
Connection Type	Flanged
Line Size	40
Design Pressure	1500
Controlled Pressure	1500
Stem	304 Stainless
Tubing	304 Stainless
Cylinder	FM Steel (Nickel plated)
Capacity Gallons / Hr	12 to 40
Working Pressure	300 - 1500
Temperature Range	-20 to 650 deg F
Output Pressure	300 - 1500

2 IN 23 PVP PNEUMATIC VLV POS

PNEUMATIC VALVE POSITIONER TOPWORKS, DUCTILE and STEEL

Body Material	XH Pipe
Connection Type	NA
Line Size	2"
Design Pressure	NA
Controlled Pressure
Stem	303 Stainless
Tubing	304 Stainless
Diaphragms	Buna (Nitrile)
Actuator Working Pressure	35 to 45 pisg
Temperature Range	-20 to 100 deg F
Supply Pressure	35-45psig
Output Pressure	0-45psig

2 IN 212 SMA DB PO W/TI

BALANCED VALVES

Diaphragm or Piston balanced, diaphragm operated oil valves. 10 to 100 psig signal for control is systems up to 400 psig.

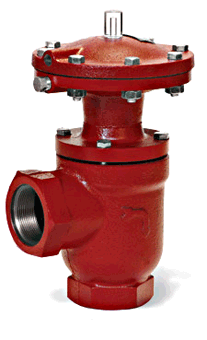

2 IN NPT ANGLE DIAPHRAGM BALANCED MOTOR VALVE, NORMALLY CLOSED CAST IRON

Features:

• Soft seat for full shut-ff (Class VI)

• 303 stainless steel shaft

• Stainless steel adjustable linkage

• SA-106 Grade B/C pipe

• Open yoke design - accurate travel indication - complete isolation of actuator

• Equal percentage trim

• Equal percentage trim for throttling service

• Liquid level spread adjustable from 6 to 12 inches of water


Body Material	Cast Iron
Connection Type	NPT
Line Size	2"
Design Pressure	175
Controlled Pressure	125
Stem	303 Stainless
Seat	Buna (Nitrile)
Diaphragms	Buna (Nitrile)
Cage	Ductile
