Dump Valves

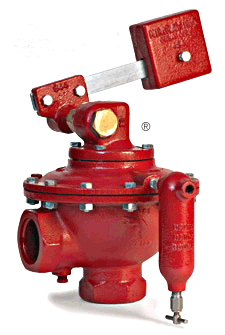

2 IN 26 SWA TREATER VALVE
2 IN NPT TREATER VALVE, CAST IRON
Heater Treater or Salt Water Disposal Valves, balanced lever operated oil or water dump valves to control liquid levels in vessels up to 125 psig.| Body Material | Cast Iron |
| Connection Type | NPT |
| Line Size | 2" |
| Design Pressure | 125 |
| Controlled Pressure | 125 |
| Stem | Ductile |
| Plug | 303 Stainless |
| Seat | Buna (Nitrile) |
| Diaphragms | Buna (Nitrile) |
| Packing | Teflon |
| Stuffing Box | Brass |
| Disc | Ductile |
| Temperature Range | -20 to 100 deg F |
| Supply Pressure | 15-30 psig |
Features:
- Soft seat for full shut-ff (Class VI)
- 3/4" float arm hub
- Sample tap on inlet connection
- Prevents air from entering salt water disposal system piping
- Low friction waggle arm
- Snap or Throttle control in one pilot
- Built-in supply filter
- Vented case--1/4" tapped vent
- Side or back connections
